Industrial Products
Specialize in all aspects of harsh environment electronics manufacturing.

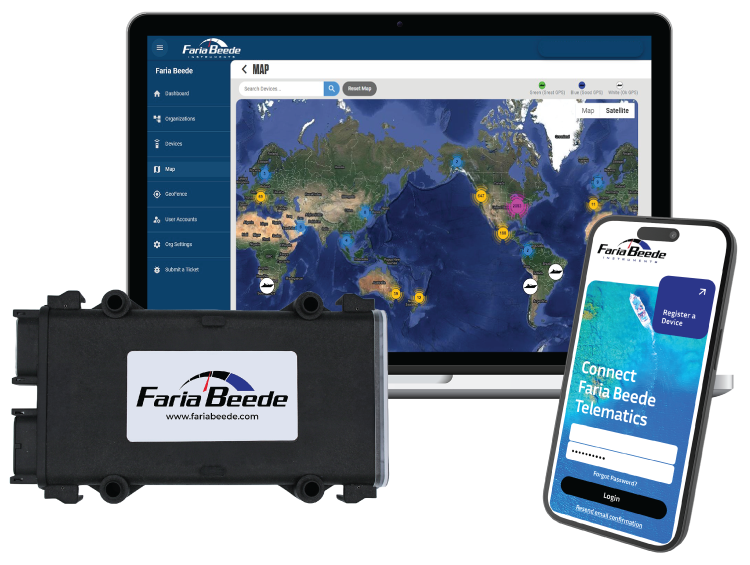

- SENTRY TELEMATICS
Sentry is your all-in-one solution for boat tracking and remote monitoring. With Sentry, you can effortlessly access your vessel’s vital systems right from your smartphone. Set alerts for unusual activity and take control of key functions like lighting, refrigeration, and air conditioning—all from the palm of your hand.
Overview of Features:
- ● Easy, hassle-free installation
- ● Security alerts, anchor alarms, and high-water alarms for peace of mind
- ● Real-time weather updates at your boat's location
- ● Seamless integration with your engine systems
System Specs:
- ● 3 Analog & 7 Switched Inputs
- ● 3 Switched Outputs
- ● Cellular, GNSS, Bluetooth, & Internal Antennas
- ● 2 CAN Bus

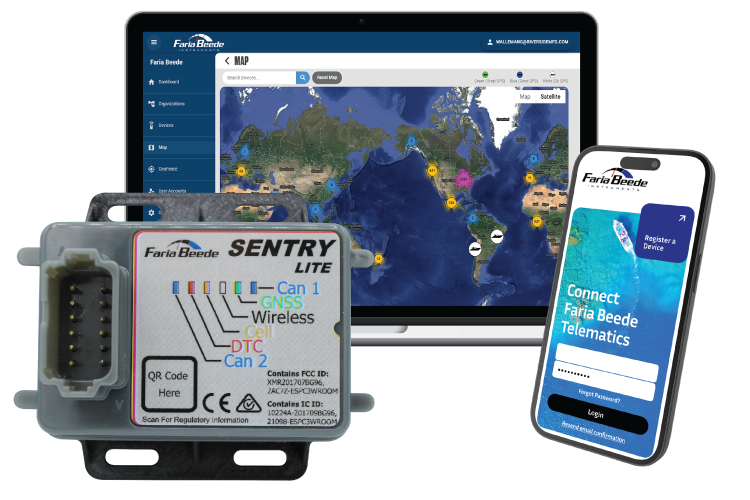

- SENTRY Lite
Sentry Lite delivers smart, reliable boat monitoring in a compact package.
Designed for easy installation, it connects directly to your vessel’s existing systems, no extra
sensors required. With real-time data and remote access from your smartphone, Sentry
Lite keeps you informed and in control, wherever the water takes you.
Overview of Features:
- ● Easy, hassle-free installation
- ● Security alerts, anchor alarms, and high-water alarms for peace of mind
- ● Real-time weather updates at your boat's location
- ● NMEA2000 ®, SmartCraft ®, and J1939
- ● Seamless integration with your engine systems
System Specs:
- ● 6 Configurable Outputs
- ● 2 Configurable Inputs
- ● 2 CAN Bus
- ● Cellular, GNSS, Bluetooth, & Internal Antennas

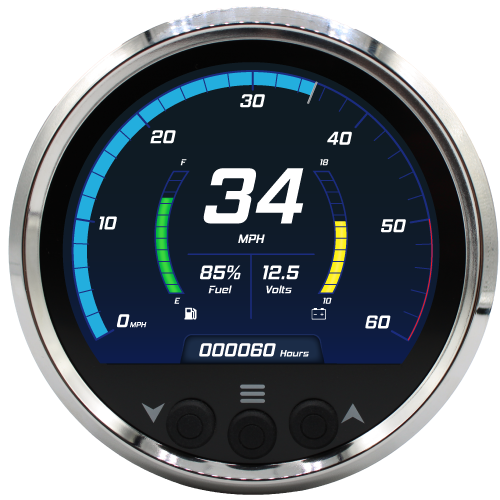

- MG5K
Built for both commercial and recreational use, the MG5K enhances performance, safety, and user
experience in any environment.
Overview of Features:
- ● USB Type-C Connector
- ● Wi-Fi & Bluetooth Communication
- ● GPS Receiver for Speedometer Applications
- ● Touchscreen
- ● 3 Physical Buttons
- ● Space Saving Instrumentation
System Specs:
- ● IP69k Rated
- ● 1000 Nit Sunlight Readable Display
- ● 180° Viewing Angle
- ● 3 Physical Buttons for Additional Control
- ● CAN Bus Communication: J1939, NMEA 200K and Smartcraft®
- ● 6 Software Configurable Inputs
- MCD
The intuitive daylight readable NMEA2000 device operates with Lowrance and Garmin N2K Fuel Flow Sensors for gasoline powered marine engines.
Overview of Features:
- ● Customizable
- ● Field reprogrammable through microUSB
- ● 2 universal inputs
- ● CAN interface
- ● Conditional NMEA 2000 compliance
- ● Ambient light sensor
- ● STM32F412 microcontroller
- ● TouchGFX graphics engine and library
- ● External memory
- Harsh Environment Enclosure
Overview of Features:
- ● 16381-NY-000 (black, equivalent to EEC-325X4B & AIPXE-325X4B)
- ● 16381-PC-000 (clear, equivalent to AIPXE-325X4B-E017)
- ● Compatible with headers DTM13-12P & ATM13-12P single & dual connector headers
-
● Optional configurations:
Vent Hole, USB Programming Port & Heatsink (available upon request)
System Specs:
- Overall Size: 113.9mm long X 118.5mm wide X 34.5mm tall (4.5in X 4.7in X 1.4in)
- Mounting Pattern: 101.6 (4 in), hole sized for ¼in and/or 6mm fasteners
-
Material:
- 16381-NY-000:- Black Nylon
- 16381-PC-000:- Clear Polycarbonate
- Touch Tek 4.0
Overview of Features:
- ● Operational temp: -40°C to 80°C
- ● Dustproof
- ● Operating voltage: 8 - 16VDC
- ● On state current consumption: 500mA (approx.)
- ● Protection
- ● Reverse polarity
- ● Backfeed
- ● Under/over voltage
System Specs:
- ● Six 20A outputs
- ● <.5 mA quiescent current draw
- ● Programmable outputs
- ● Interlock programmings
- ● Audible/lighting control options
- ● Built in warnings/alerts
- Wireless I/O
System Specs:
- ● Operating voltage: 9-18VDC
- ● Operating temperature: - 30˚C to 70˚C
- ● Supply Voltage sensing
- ● Environmental rating: IP67
- ● Bluetooth LE communication with customizable phone app
- ● CAN bus communication
- ● 433MHz receiver for Key Fobs
- ● 6 Half Bridge Driver Outputs
- ● 7 LED indicators
- ● 1 Analog Output
- ● 2 General Purpose Inputs with Pull-Up or Down
- ● 3 Quadrature Encoder Interface
- ● 8, 14, 23 or 35 pin connector depending on customer’s needed I/O
- CDR 400
Solid state, heavy-duty battery disconnect switch with built-in, selectable ignition interlock to protect the vehicle’s alternator.
Overview of Features:
- ● Selectable 1-30 min. shut-down delay off timer
- ● Loss of ground and faulty ground protection
- ● Low voltage shut down < 8VDC
- ● Controlled ramp ON and OFF
- ● Rapid ON/OFF cycling prevention protection
- ● System on LED and Override LED indication
System Specs:
- ● Operating voltage: 9-18VDC
- ● Off-state current draw: 6.5mA
- ● On resistance: .000220hm
- ● Operating temp: -40˚C to 85˚C
- ● Environmental: IP67
- Terminal Stud Blocks
A single stud terminal block can safely handle up to 400A of current.
Features:
- ● Provides clean ground or power connections
- ● Tested up to 300˚F
- ● 12 or 24 VDC compatible
- ● Available with 5/16, 1/2 and 3/8” diameter bolts
- ● Optional red base color available
- ● Base measures 3” x 1.5” x .0425”
